Part Number : 2SA940
Function : 1.5Ampere PNP silicon power transistor / 150Volts 25Watts / TO-220 Package
Manufacturer : Mospec Semiconductor

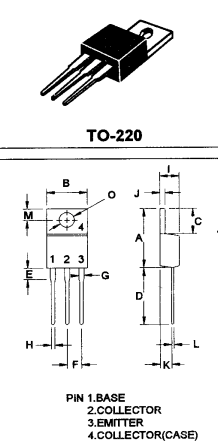

Pinout :
Description
2SA940 transistor is designed for use in general purpose power amplifier, vertical output application.
* Collector-Emitter Volate
Vceo = 150V(Min)
* DC Current Gain
hFE = 40-140@ Ic = 500mA
* Complemenetrary NPN 2SC2073
Datasheet PDF Download
Other datasheets in the file :
2SA940,A940
