Part Number : 2SA814
Function : Silicon PNP Epitaxial Base Mesa Tyep / Medium Power Amplifier Applications
Manufacturer : Toshiba

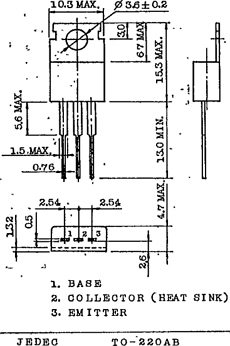

Pinout :
Description
* High Breakdown Voltage :
V ceo = -120V (2SA814), V ceo = -100V (2SA815)
* Complementary to 2SC1624 and 2SC1625.
Datasheet PDF Download
Other datasheets in the file :
2SA814,2SA815,A814,A815
