Part Number : 2SA1697
Function : High-definition CRT display video output, wide-band amplifier.
Manufacturer : SANYO -> Panasonic

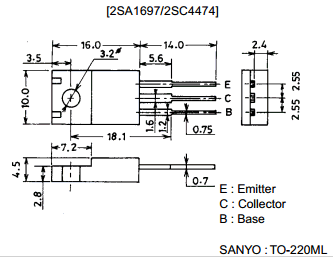

Pinout :
Description
· High fT: fT=300MHz.
· High breakdown voltage : VCEO=200V min.
· Small reverse transfer capacitance and excellent high frequency characteristic :
Cre=2.2pF/NPN, 2.7 pF/PNP
· Adoption of FBET process.
· Micaless type.
Datasheet PDF Download
Other datasheets in the file :
2SA1697,2SC4474,A1697,C4474
