Part Number : 25P10AV
Function : 1 Mbit, low voltage, Serial Flash memory with 50MHz SPI bus interface
Manufacturer : STMicroelectronics

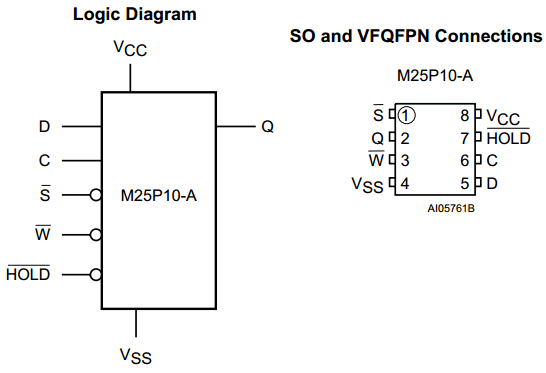

Pinout :
Description
The M25P10-A is a 1 Mbit (128K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.
The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.
The memory is organized as 4 sectors, each containing 128 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 512 pages, or 131,072 bytes.
Datasheet PDF Download
Other datasheets in the file :
25P10AV,M25P10-AVMN6,M25P10-AVMN6P,M25P10-AVMN6T,M25P10-AVMN6TP
