Part Number : 1N5615
Function : 1N5615 THRU 1N5623 / Glass Passivated Fast Switching Rectifier / DO-204AP Package
Manufacturer : General Semiconductor

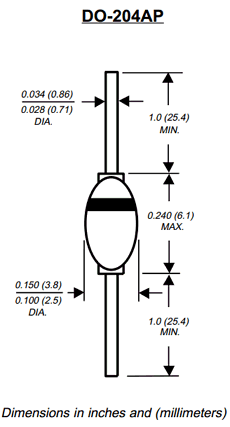

Pinout :
Description
* GLASS PASSIVATED FAST SWITCHING RECTIFIER
* Reverse Voltage -200 to 1000 Volts Forward Current – 1.0 Ampere
* High temperature metallurgically bonded construction
* Hermetically sealed case
* Glass passivated cavity-free junction
* 1.0 Ampere operation at TA=55°C with no thermal runaway
* Typical IRless than 0.1µA
Datasheet PDF Download
Other datasheets in the file :
1N5615,1N5617,1N5619,1N5621,1N5623
